As a pioneer in fractional and integral horsepower electric drives since 1985, Globe Scott Motors Pvt. Ltd. manufactures high-efficiency Brushless DC (BLDC) Motors at our ISO 9001:2015 certified manufacturing facility in Killa Pardi, Gujarat. Engineered with permanent magnet synchronous technology and electronic commutation, our BLDC motors deliver industry-leading energy efficiency (88% to 94%+), compact power density, silent operation, and maintenance-free service life exceeding 20,000 operational hours.
Whether you require standard frameless or housed motors for industrial automation, custom traction drives for electric vehicles (EV 2W/3W), whisper-quiet actuators for medical diagnostics, or high-torque drives with planetary gearboxes, our dedicated R&D engineering team designs and manufactures BLDC motors precisely matched to your mechanical and electrical specifications.
Looking for deeper technical background? Read our engineering guide on what is a BLDC motor and how it works or explore our analysis of the advantages of using BLDC motors for micro and macro applications.
Electronic commutation eliminates commutator friction and copper brush losses, maximizing battery runtime in EVs & portable equipment.
No carbon brushes to wear down or replace. Sealed pre-lubricated high-precision ball bearings deliver 20,000+ hours of continuous duty.
Equipped with 120° Hall effect sensors or optical encoders. Fully compatible with PWM and Field-Oriented Control (FOC) drivers.
Precision CNC-machined aluminum housings with corrosion-resistant finishes, Class F/H insulation, and dust/water-resistant seals.

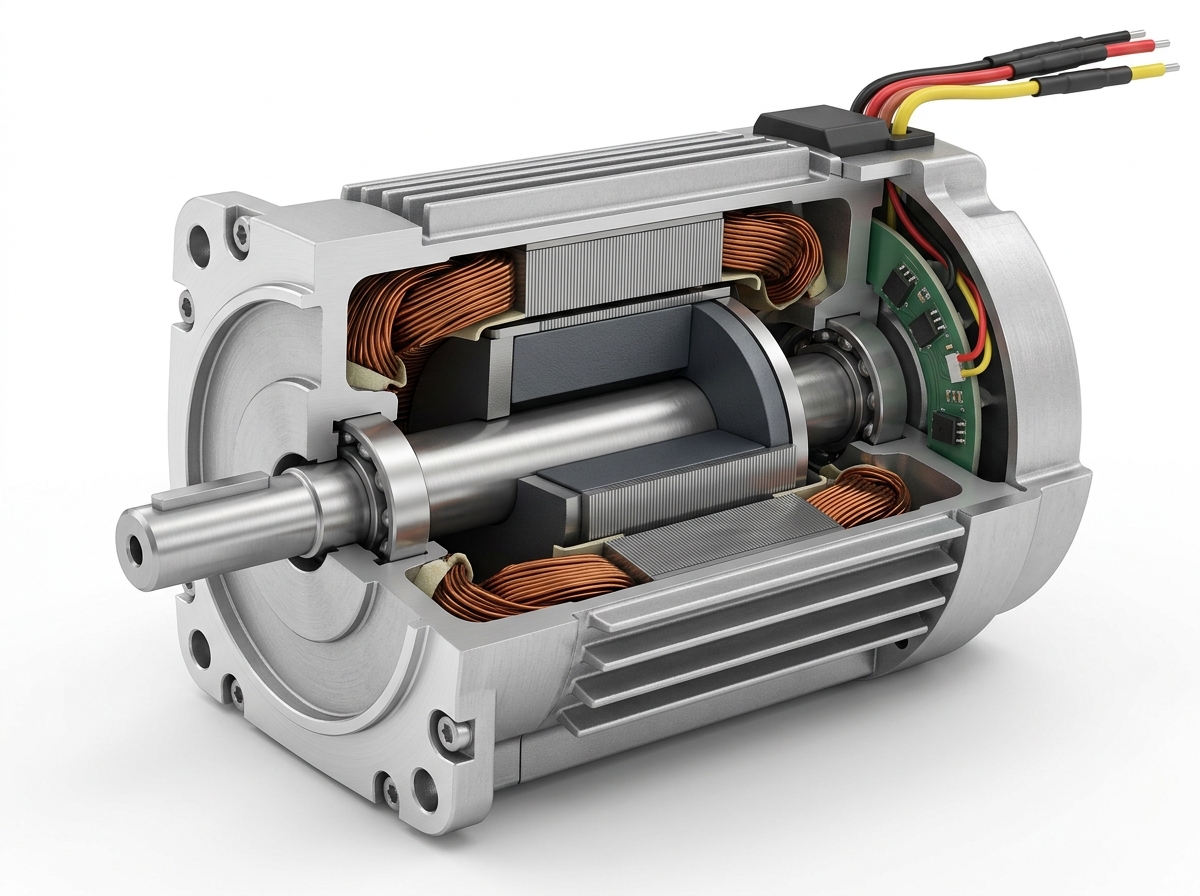

Cutaway diagram: Precision slotted stator windings and high-energy Neodymium (NdFeB) rotor
| Voltage Supply | 12V, 24V, 36V, 48V DC (Battery or Regulated DC Supply) |
| Rated Power Output | 30W to 400W (Continuous S1 Duty) |
| Rated Speed / No-Load | 3,000 RPM (Variable speed from 300 to 4,500 RPM) |
| Continuous Torque | 0.10 Nm to 1.30 Nm (Peak torque up to 3.80 Nm) |
| Rotor & Stator Design | Inner rotor with sintered NdFeB permanent magnets; 3-phase star winding |
| Feedback & Sensing | 3 Built-in Hall effect sensors (120° electrical angle); optional incremental encoder |
| Mounting Configurations | NEMA 23, NEMA 34 flange, or IEC B14 face mount with custom shaft length |
| Ingress Protection & Insulation | IP54 standard (IP65 optional); Class F (155°C) insulation standard |

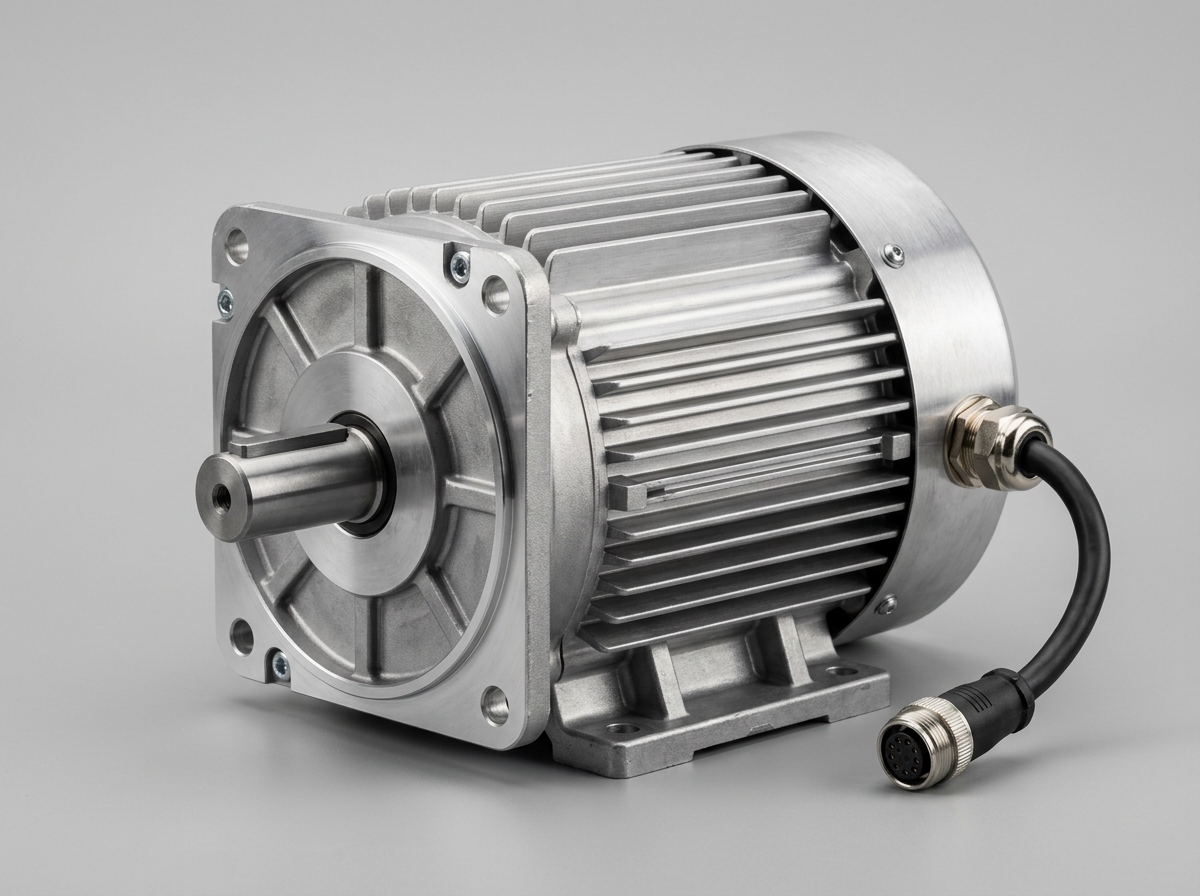

Heavy-duty industrial BLDC motor with radial cooling fins, B5 flange, and sealed industrial connector
| Operating Voltage | 48V, 60V, 72V, 96V DC & 310V DC (Rectified 230V AC Single Phase) |
| Rated Power Range | 500W to 3,500W (0.67 HP to 4.7 HP) |
| Base Speed | 1,500 RPM / 3,000 RPM (Custom winding up to 5,000 RPM) |
| Rated Torque | 1.6 Nm up to 11.2 Nm (Instantaneous peak torque up to 32 Nm) |
| Motor Frame Standard | IEC 71, IEC 80, IEC 90 (B3 foot, B5 flange, or B14 face mounting) |
| Thermal Protection | Embedded PTC thermistor or KTY84 sensor for continuous winding monitoring |
| Driver Compatibility | Sinusoidal FOC (Field Oriented Control) or Trapezoidal BLDC electronic speed controllers |
| Enclosure & Rating | IP55 / IP65 / IP67 sealed heavy-duty cast aluminum frame; Class H (180°C) wire |
Engineered directly by Globe Scott Motors, our proprietary BISON commercial and industrial fan systems are powered by our custom high-torque BLDC outer-rotor drive. Delivering massive airflow with up to 65% lower electrical power consumption compared to conventional induction-motor fans, BISON fans provide whisper-quiet operation, multi-speed electronic control, and continuous industrial durability.
Ideal for warehouses, commercial showrooms, industrial workshops, and educational campuses. Inquire with our sales engineers to learn about bulk supply and custom OEM branding.
Understand how Brushless DC technology outperforms traditional motors in efficiency, maintenance, and power density.
| Performance Parameter | Globe Scott BLDC Motor | Permanent Magnet DC (PMDC) | AC Induction Motor |
|---|---|---|---|
| Commutation Method | Electronic Commutation (Sensors / Inverter) | Mechanical (Carbon Brushes & Commutator) | Self-commutating via AC rotating magnetic field |
| Typical Operating Efficiency | 88% to 94%+ (High BEE Rating) | 70% to 82% | 65% to 85% |
| Operational Maintenance | Zero Maintenance (No brushes to replace) | Periodic brush inspection & replacement | Low (Bearing maintenance only) |
| Design Lifespan | > 20,000 to 25,000 Hours | 2,000 to 5,000 Hours (Brush life limited) | 15,000 to 20,000 Hours |
| Acoustic Noise & EMI | Whisper-Quiet (<45 dBA), Zero Sparking | Moderate noise; carbon brush arc sparking | Quiet, low EMI |
| Speed Control Range | Wide (10:1 to 50:1 with Closed Loop) | Moderate (Voltage controlled) | Narrow (Requires expensive VFD) |
| Power-to-Weight Ratio | Highest (Extremely compact and lightweight) | Moderate | Low (Heavy lamination stacks) |
Need a traditional brushed motor? View our standard PMDC Motors Series and PMDC Geared Motors.
Traction motors for 2-wheelers, 3-wheelers (e-rickshaws), automated wheelchairs, golf carts, and auxiliary power steering systems.
Direct-drive wheel motors and steering actuators for Autonomous Mobile Robots (AMRs), automated warehouse guided vehicles, and robotic arms.
In-line duct blowers, commercial HVLS fans, cleanroom HEPA fan filter units (FFUs), and energy-saving ceiling fan assemblies.
High-precision peristaltic pumps, surgical drill actuators, dialysis machines, blood centrifuges, and respiratory ventilators requiring zero spark hazards.
Specially engineered brushless DC railway carriage fans and track switch point machine actuators built to RDSO railway specifications. (Learn more)
High-efficiency DC submersible and surface water pumps engineered to run directly on solar PV strings with MPPT brushless controller cards.
At Globe Scott Motors, every brushless motor manufactured at our Killa Pardi facility undergoes 100% rigorous computerized testing to ensure flawless performance under severe industrial operating conditions:
Need a custom motor configuration? We specialize in tailoring motors to customer mechanical specifications:
Share your target voltage, power/wattage, rated speed (RPM), continuous torque, and application requirements. Our motor engineering specialists will review your parameters and provide a comprehensive technical proposal and CAD drawing.
Get technical consultation on motor sizing, driver selection, and OEM volume pricing.
